[08032009] - Wings

Building the Wings - The stuff of Lift










08/03/2009 - Final leak test; fitted fuel tank and inboard bottom skin

I have come through a period where I didn't take many photos; but have decided to get back into the habit even though this is the second wing and its a bit all the same.



bullet

Leak test
All good this time; one screw in the inspection hatch was leaking but a quick tighten and we were done


bullet

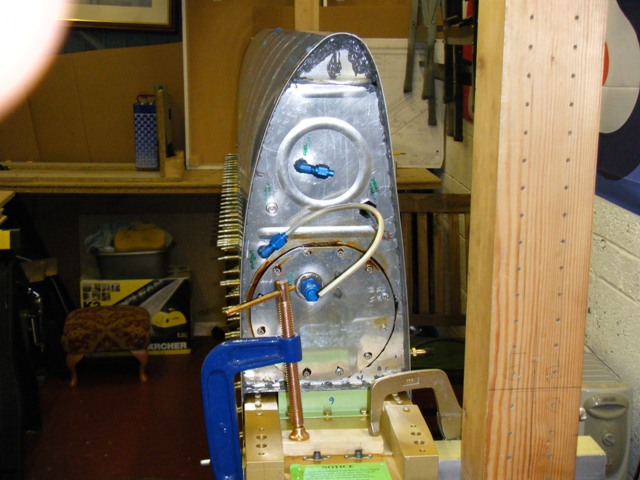

Fuel tank bolted, torqued and the screws fitted to the fuel tank


bullet

Dimpled all the ribs for the top skins (dimpling of rib holed for bottom skin still to do)


bullet

Scarf joint
I was a little more brutal this time around and it go the job done quicker.  It took ages last time.


bullet

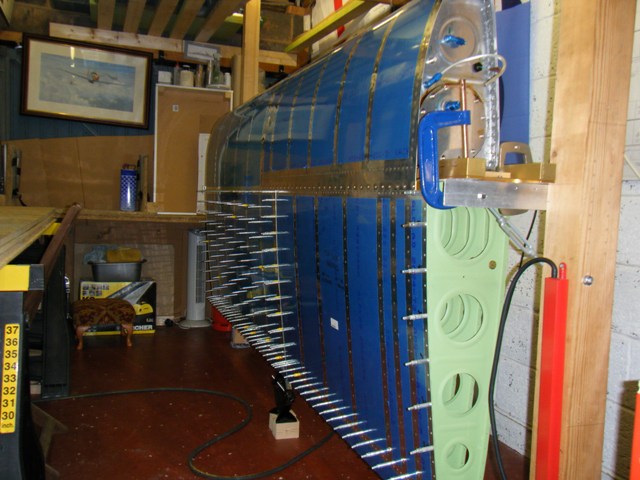

Inboard top skin clecoed on and riveted

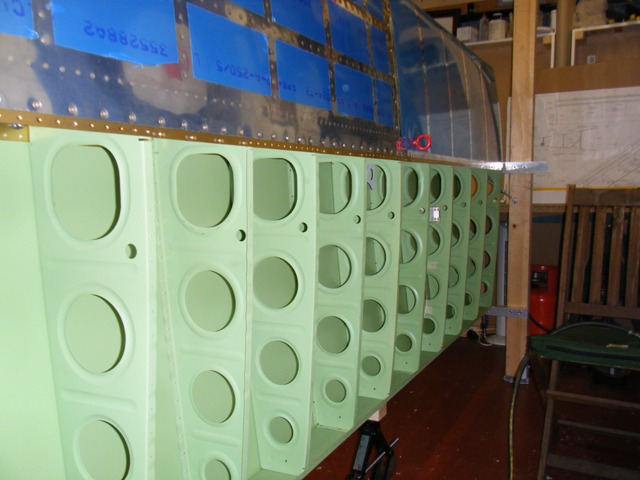

You can see from the second photo how many rivets that myself and Bob managed to do before the end of the day.  A couple to drill out, but the 3lb bucking bar and large offset back riveter work a treat on this part of the job



























Nothing more for today...
